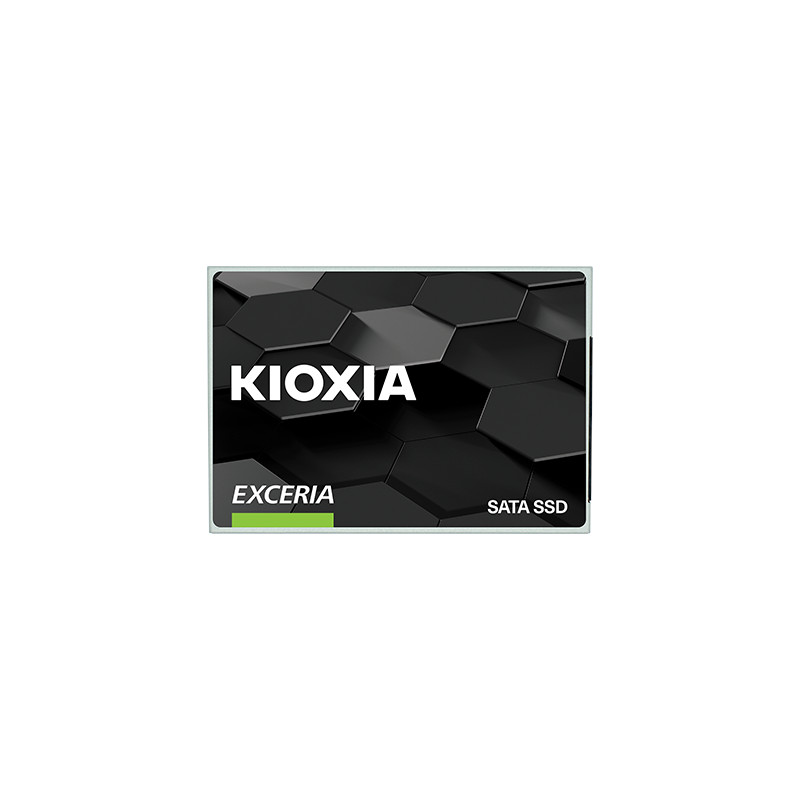

KIOXIA Exceria SATA SSD 480 GB

• Capacity

  240GB, 480GB, 960GB

• Interface

  Serial ATA (SATA) 6 Gbit/s

• Form Factor

  2.5-inch, 7mm height

• Flash Memory Type

  BiCS FLASH™ TLC

• Dimension (Max: LxWxH)

  100.45 x 70.10 x 7.20 mm

• Weight

  240GB: 45.5g (typ.)
  480GB: 45.6g (typ.)
  960GB: 45.7g (typ.)

Performance

• Max Sequential Read Speed

  555 MB/s

• Max Sequential Write Speed

  540 MB/s

• Max Random Read Speed

  240GB: 79,000 IOPS
  480GB: 82,000 IOPS
  960GB: 81,000 IOPS

• Max Random Write Speed

  240GB: 87,000 IOPS
  480GB, 960GB: 88,000 IOPS

• Endurance: TBW (Total Bytes Written)

  240GB: 60 TB
  480GB: 120 TB
  960GB: 240 TB

• MTTF

  1.5 million hours

Environmental

• Operating Temperature (Tc)

  0 °C to 65 °C

• Storage Temperature

  -40 °C to 85 °C

• Shock Resistance

  14.7 km/s² {1500 G} 0.5 ms half sine wave

• Vibration

  196 m/s² {20 G} (Peak, 10 to 2,000 Hz) , (20 min / Axis) x 3

• Supply Voltage

  5 V ± 5%

• Power Consumption (Active)

  240GB, 480GB: 1.6W (typ.)
  960GB: 1.7W (typ.)

• Power Consumption (Idle)

  100 mW (typ.)

• Power Consumption (DevSleep)

  10 mW max

Compatibility

• Serial ATA (SATA)

  ATA/ATAPI Command Set-3 (ACS-3) and Serial ATA revision 3.2 interface specifications supported

• Connector Type

  Standard SATA Power Connector

• Target Applications

  Client desktops and laptops
